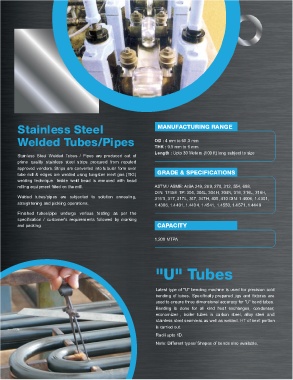

Stainless Steel MANUFACTURING RANGE

Welded Tubes/Pipes OD : 4 mm to 60.3 mm

THK : 0.5 mm to 6 mm
Length : Upto 30 Meters (100 ft) long subject to size
Stainless Steel Welded Tubes / Pipes are produced out of
prime quality stainless steel strips procured from reputed
approved vendors. Strips are converted into tubular form over
tube mill & edges are welded using tungsten inert gas (TIG) GRADE & SPECIFICATIONS
welding technique. Inside weld bead is removed with bead
rolling equipment fitted on the mill. ASTM / ASME: A/SA 249, 269, 270, 312, 554, 688,
DIN: 17458 TP: 304, 304L, 304H, 304N, 316, 316L, 316H,
Welded tubes/pipes are subjected to solution annealing, 316Ti, 317, 317L, 347, 347H, 405, 410 DIN: 1.4006, 1.4301,
straightening and pickling operations. 1.4306, 1.4401, 1.4404, 1.4541, 1.4550, 1.4571, 1.4449

Finished tubes/pipe undergo various testing as per the
specification / customer's requirements followed by marking
and packing. CAPACITY

1,200 MTPA

"U" Tubes

Latest type of "U" bending machine is used for precision cold
bending of tubes. Specifically prepared jigs and fixtures are
used to ensure three dimensional accuracy for "U" bend tubes.
Bending is done for all kind heat exchanges, condenser,
economizer , boiler tubes in carbon steel, alloy steel and
stainless steel seamless as well as welded. HT of bent portion
is carried out.
Radii upto 1D.
Note: Different types/ Shapes of bends also available.
